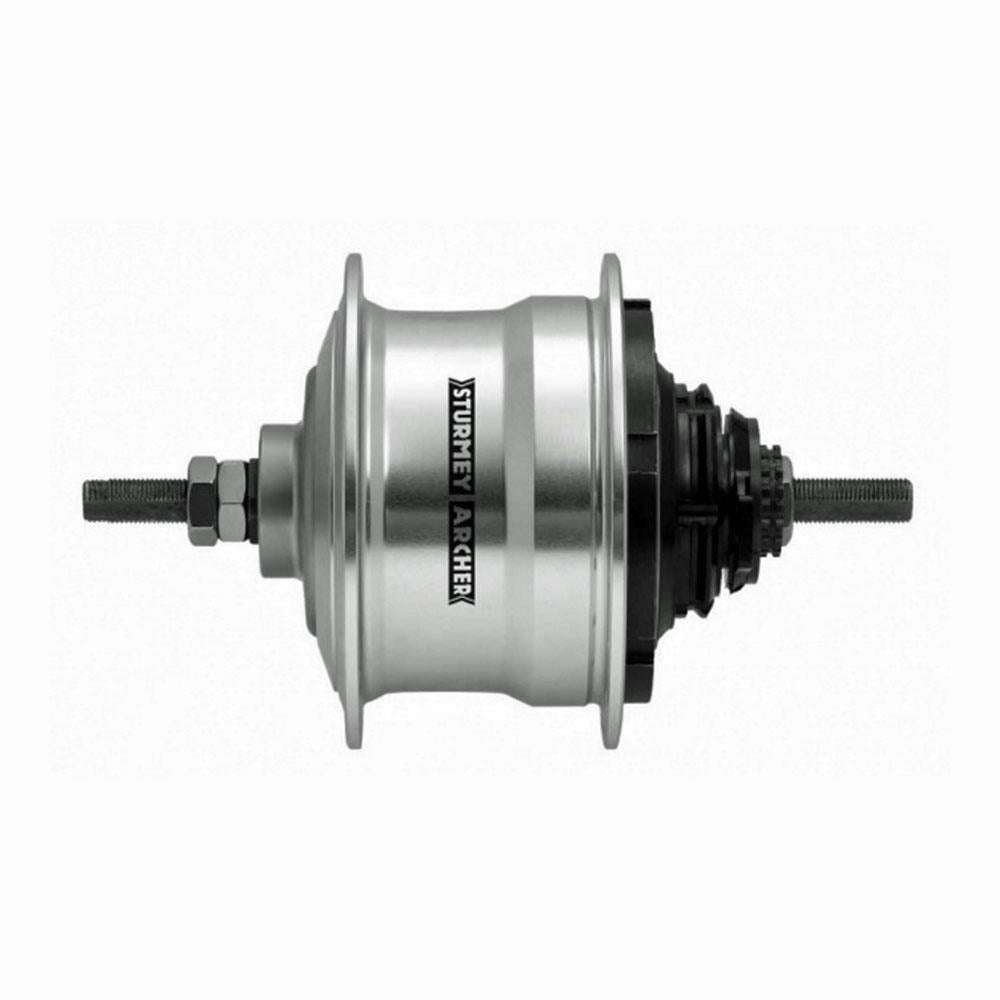

Sturmey Archer RX-RF5 5s Rotary Gear Hub 36H
Sturmey Archer RX-RF5 5 Speed Internal Gear Freewheel Rear Hub with Rotary gear selection.
5-Speed internal gear hub with gear ratio of 243%. A 6061 Aluminium hub shell with 36 spoke holes, designed for heavy duty use. Compatible with 16 to 22 teeth sprocket (18 tooth included). Rotary gear selector without protrusions outside the frame. 5 speed R/H grip shifter with gear indicator, gear cable and outer housing. 13/32" slotted axle diameter, 185mm axle length. Over locknut dimension is 135mm. Compatible with 13/14G spokes. Natural alloy finish. Weighs 1980g approx.
Gear Ratios:
Overall Range: 243%
Gear 1: 64% (Gear 2 - 25%)
Gear 2: 80% (Gear 3 - 25%)
Gear 3: 100% (Direct Drive)
Gear 4: 125% (Gear 3 + 25%)
Gear 5: 156% (Gear 4 + 25%)
MPN: RX-RF5
