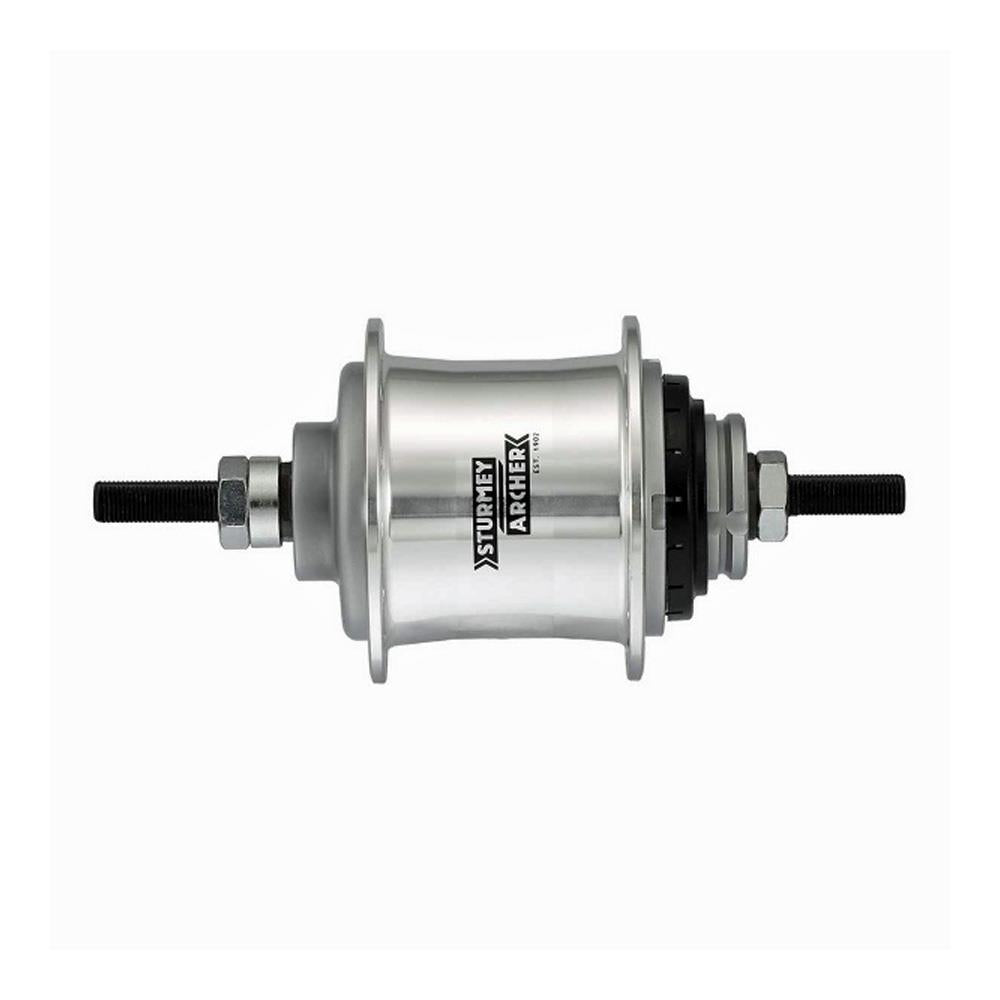

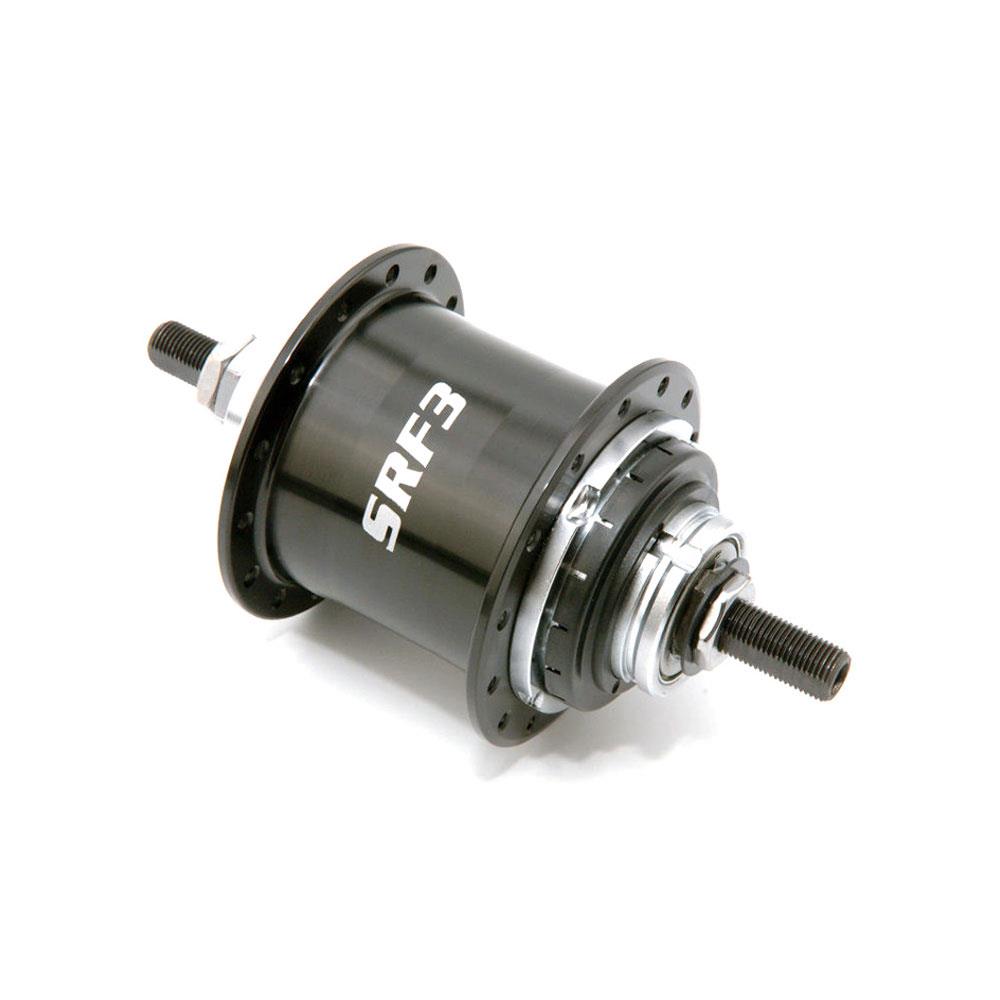

Sturmey Archer S-RF3 3s Internal Gear Hub 36H 163mm
Sturmey Archer S-RF3 3 Speed Freewheel Rear Hub with installation kit.
3-Speed internal gear hub with gear ratio of 177% and 33% gear steps. A 6061 Aluminium hub shell with 36 spoke holes, designed for heavy duty use. Compatible with 13 to 24 teeth sprockets (18 tooth included). 3 speed thumb shifter with cable and outer housing. Natural alloy finish. 163mm Axle length. Weighs 1090 g approx. Sold in Silver or Black finish.
Gear Ratios:
Overall Range: 177%
Gear 1: 75% (Gear 2 -33%)
Gear 2: 100% (Direct Drive)
Gear 3: 133% (Gear 2 +33%)
Specifications:
Hub Shell Material: 6061 Aluminum
Colour: Black
Axle Diameter: 13/32 Slotted
Axle Length: 163mm
Over Locknut Dimension: 117mm
Right Axle Protrusion Length: 22mm
Left Axle Protrusion Length: 24mm
Spoke Holes: 36
Pitch Circle Diameter: 67mm
Center to Flange Right: 28.6mm
Center to Flange Left: 28.0mm
Flange Width: 53mm
Spoke Compatibility: 13g or 14g
Sprocket Teeth: 13T through 22T
Chain Line: 1/8 Flat 43.1mm
Chain Line: 1/8 Dished 41.5mm, 44.9mm
Chain Line: 3/32 Flat 42.7mm, 43.5mm
Chain Line: 3/32 Dished 41mm, 45mm
Indicator Chain: HSA315 Mark 3
Weight: 1040g
MPN: AW-S-RF3 (Silver) / AW-S-RF3BK (Black)
