Sturmey Archer AW-S-RF3 3-Speed Internal Gear Freeweel Hub 28H
Sturmey Archer Rear Hub (Alu)

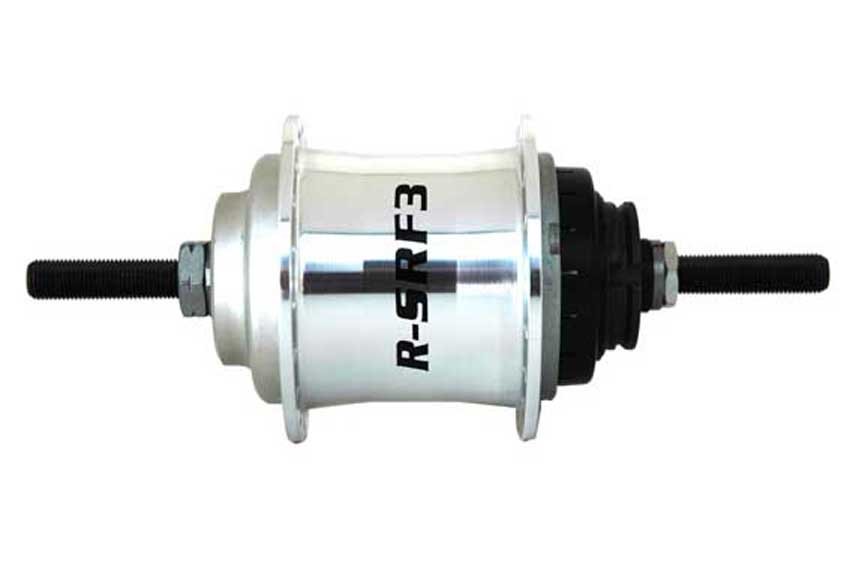

AW-S-RF3 3-Speed Internal Gear Freeweel Hub 28H Silver – 148mm Axle
Available with 175mm, 163mm or 148mm axle lengths
Classic 3 speed gear ratio of 177%
Hub Shell Material 6061 Aluminum
Axle Diameter 13/32 Slotted
Axle Length 148mm
Over Locknut Dimension 117mm
Right Axle Protrusion Length 22mm
Left Axle Protrusion Length 24mm
Spoke Holes 28
Pitch Circle Diameter 67mm
Center to Flange Right 28.6mm
Center to Flange Left 28.0mm
Flange Width 53mm
Spoke Compatibility 13g or 14g
Sprocket Teeth 13T through 22T
Chain Line: 1/8 Flat 43.1mm
Chain Line: 1/8 Dished 41.5mm, 44.9mm
Chain Line: 3/32 Flat 42.7mm, 43.5mm
Chain Line: 3/32 Dished 41mm, 45mm
Indicator Chain HSA315 Mark 3
Weight 1040g
